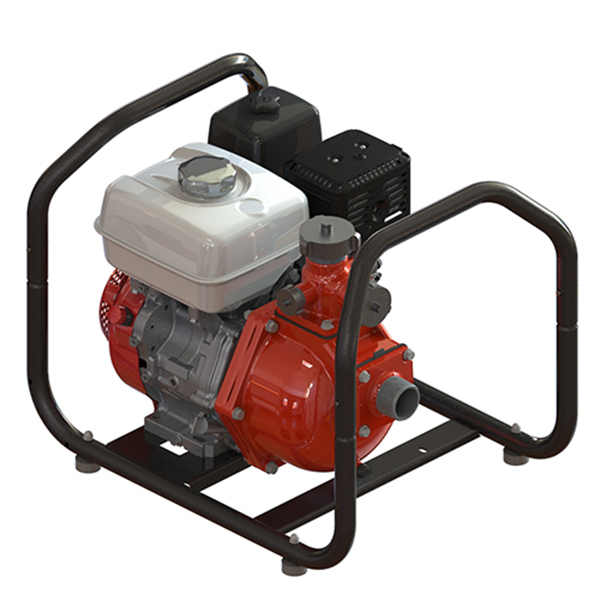

This workhorse can be used as a portable pump or on a slip-on unit. Their compact design makes them ideal for a variety of applications such as firefighting, tank filling and water transfers.
Available with a Wrap-Around Frame for more protection and ease of carrying.
SPECIFICATIONS
FLOW RATE AT SPECIFIED PRESSURE
Maximum Pressure: 150 PSI (10.3 bar)
Maximum Flow: 105 US gals/min (397 L/min)
Maximum Head: 347′ (106 m)
PERFORMANCE
92 GPM (348 lpm) @ 50 PSI (3.4 BAR)
80 GPM (303 lpm) @ 75 PSI (5.2 BAR)
64 GPM (242 lpm) @ 100 PSI (6.9 BAR)
ENGINE
Model & Type: Honda GX270 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
Maximum Power: 8.5 HP ( 6.3 kW) @ 3,600 RPM
Maximum Torque: 14.1 lb-ft (19.1 Nm) @ 2,500 RPM
Starting System: Manual; Recoil
PUMP
Type: Self-Priming 2-Stage Centrifugal
Intake: 2″ Male NPT
Discharge: 1-1/2″, 1″, 1″ Male NPT
WEIGHT
Weight: 83 Lbs (37.6 Kg)
FRAME
Wrap-around frame
OTHER SPECIFICATIONS
Discharge Caps: 2x Cap 1” NPSH & Cap 1-1/2” NPSH (N/A)
