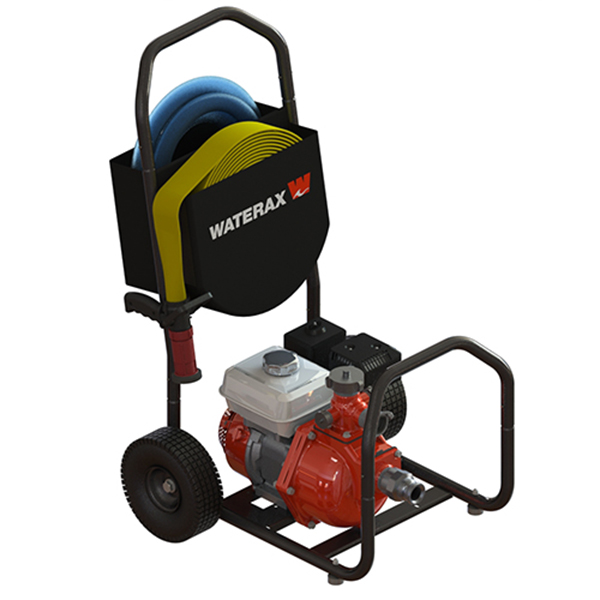

Fully equipped with professional grade equipment such as HOTLINE® forestry hose, a suction hose, a Scotty pistol grip nozzle, a camloc fitting, a foot valve & strainer and a universal Hose Wrench, with a powerful self-priming 2-Stage engine. This home fire pump is simple to set up, operate, easy to maneuver and offers superior performance. You can use this fire pump near a lake or a private pool and when you’re done, clean up and storage is effortless.
The VERSAX® is a versatile, rugged, and economical twin impeller self-priming pump powered by a Honda engine for superior water transfer performance as well as the ability to combat fire from a greater distance and at an elevation.
Having a fire pump accessible at all time means you are ready and equipped.
Stop fire in its tracks & fight fires like the pros with the VERSAX® Cart System unit. Protect your defensible space and reduce the chances of the fire spreading to neighboring homes or the surrounding forest. Looking after your defensible space gives your property a fighting chance against an approaching wildfire. While we do not encourage you to ght a raging wild re on your own, you can make a difference with the right plan and the appropriate equipment.
The VERSAX® is a multipurpose fire pump that can also be used for other applications such as tank filling, water transfers and on small utility vehicles.
SPECIFICATIONS
FLOW RATE AT SPECIFIED PRESSURE
Maximum Pressure: 120 PSI (8.3 bar)
Maximum Flow: 105 US gals/min (397 L/min)
Maximum Head: 277′ (84 m)
PERFORMANCE
83 GPM (314 lpm)
63 GPM (238 lpm)
38 GPM (144 lpm)
ENGINE
Model & Type: Honda GX200 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
Maximum Power: 5.5 hp (4.1 KW) @ 3,600 RPM
Maximum Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 RPM
Starting System: Manual; Recoil
PUMP
Type: Self-Priming 2-Stage Centrifuga
Intake: 2″ Male NPT
Discharge: 1-1/2″, 1″, 1″ Male NPT, 2″ Male BSP
WEIGHT
Weight: 116 Lbs (52.5 Kg)
FRAME
Wheel cart system with hoses storage
OTHER SPECIFICATIONS
Discharge Caps: 2x Cap 1” NPSH & Cap 1-1/2” NPSH (Standard)
Hose Kit: Pistol Grip & Nozzle 50-100GPM 1.5X100′ Forestry Hose, 1.5X16 Suction, Footvalve, Adaptors (Standard)
