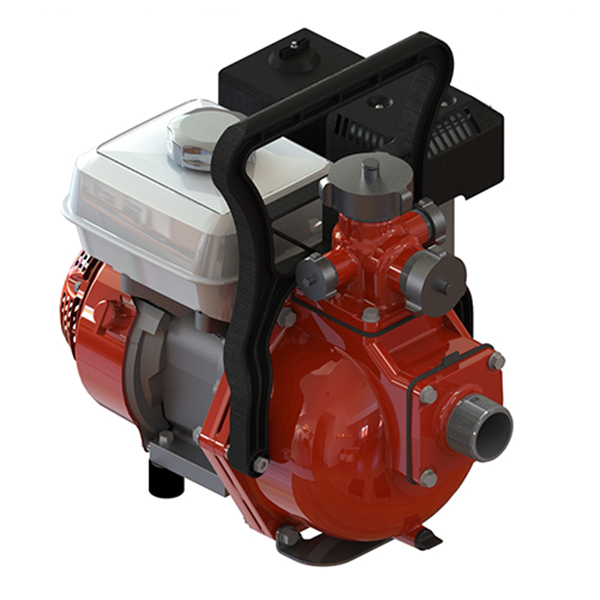

This unit is driven by a 6 HP Honda engine. It produces a maximum pressure of 120 PSI (8.3 BAR) and flow rate of 105 US GPM (397 L/min).
This workhorse can be used as a portable pump or on a slip-on unit. Their compact design makes them ideal for a variety of applications such as firefighting, tank filling and water transfers.
SPECIFICATIONS
FLOW RATE AT SPECIFIED PRESSURE
Maximum Pressure: 120 PSI (8.3 bar)
Maximum Flow: 105 US gals/min (397 L/min)
Maximum Head: 277′ (84 m)
PERFORMANCE
83 GPM (314 lpm) @ 50 PSI (3.4 BAR)
63 GPM (238 lpm) @ 75 PSI (5.2 BAR)
38 GPM (144 lpm) @ 100 PSI (6.9 BAR)
ENGINE
Model & Type: Honda GX200 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
Maximum Power: 5.5 hp (4.1 KW) @ 3,600 RPM
Maximum Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 RPM
Starting System: Manual; Recoil
PUMP
Type: Self-Priming 2-Stage Centrifugal
Intake: 2″ Male NPT
Discharge: 1-1/2″, 1″, 1″ Male NPT, 2″ Male BSP
WEIGHT
Weight: 57 lbs (25.9 kg)
FRAME
Carry Handle & Front foot support with rubber feet
OTHER SPECIFICATIONS
Discharge Caps: 2x Cap 1” NPSH & Cap 1-1/2” NPSH (Standard)
